OEM/ODM home energy storage power station power module

Short Description:

A new photovoltaic energy storage system based on LiFePO4 battery, integrated battery management system (BMS) and inverter system is widely used in household photovoltaic energy storage, emergency disaster relief power supply, backup power supply of data room, etc.

Send email to us

Product Detail

Product Tags

LiFePO4 cells, More Safer

Used Lithium iron phosphate (LiFePO4) cells, and the puncture test is not burning, Extrusion deformation without explosion, working temperature - 10 ~ 40℃

System Application

Charging the system through solar panels or staggered peak power consumption, which can be used in case of power failure or peak power consumption. It is an economic and environmental protection power supply system for families or commercial places.

Cascadable: Max. 6 Unit

High Safety: LiFePO4 Battery

Modular Desigh: Easy to Install & Maintenance

Long Lifespan: Lifecycle 6000+ Times

Bidirectional Inverter Technology High Power Charge and Discharge

Support up to 5000W solar energy and daily grid charging

Support up to 10kW AC output

Support Multiple Modules Series Connection Up to 24 kWh

A single battery module is 4KWh, which supports multi-level parallel connection, and the battery module can be selected as needed. The maximum number of battery modules in a single cabinet is 6 groups, with a total of 24kWh

LiFePO4 Battery Smart "BMS" Multi Protection Design

The battery module adopts single 40Ah LiFePO4 battery without explosion and fire

Advanced intelligent BMS provides multiple battery protection such as over temperature, over voltage, over current and overcharge

Home Application Scenario

Usually, the cost of electricity can be reduced through this clean energy system, In case of power failure or emergency, Independent and controllable renewable power supply

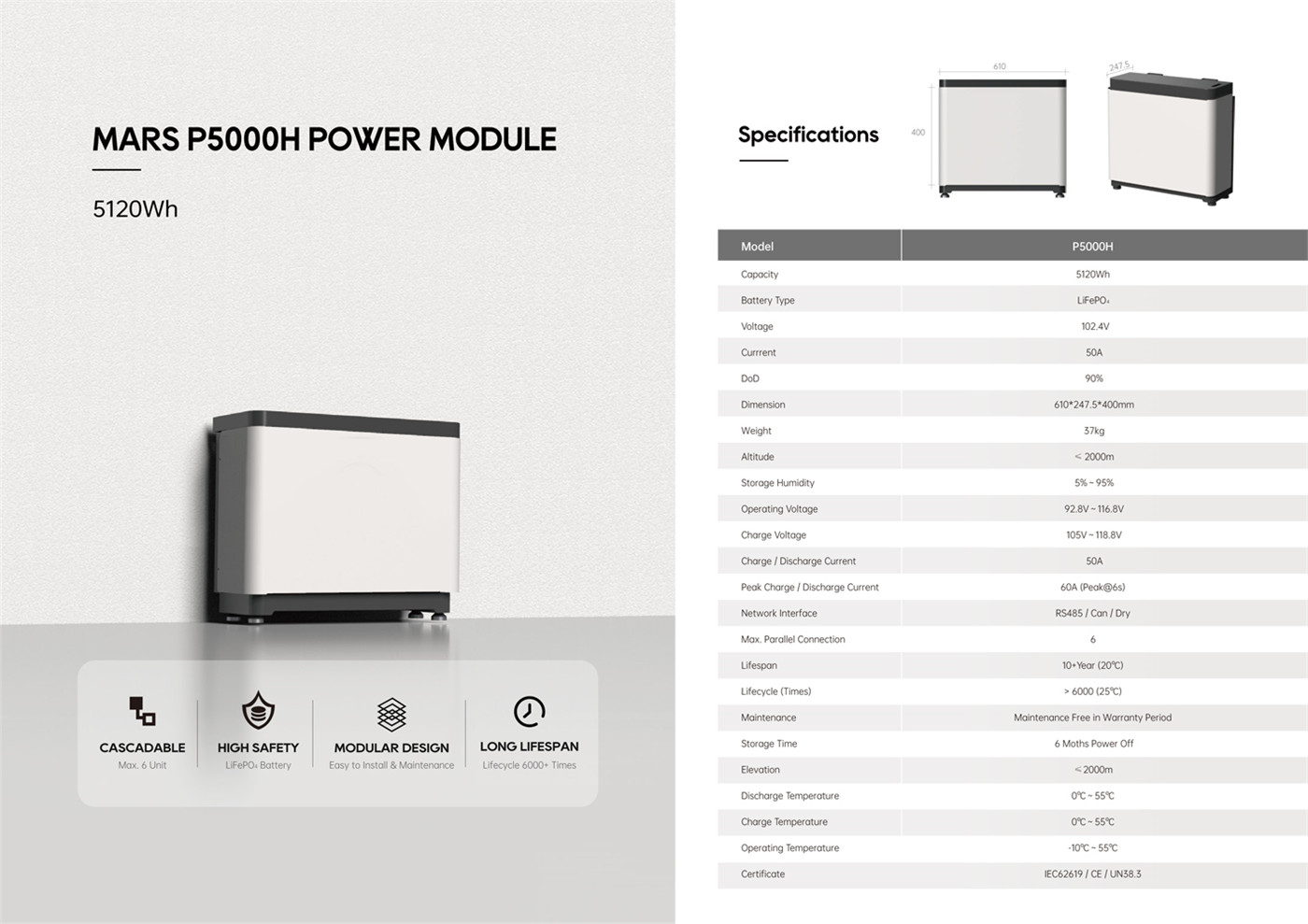

SPEC

OEMODM home energy storage power station power module2

FAQ

Q1: Can I charge and use the station at a same time?

A1: For DC outlets, you may charge and use the station at the same time but at this time the AC outlets cannot be used.When AC outlets are using and you start to charge the station, the AC outlets will be off, charging continues.

Q2: Can I charge my Tesla with this station?

A2: Except for emergency, it’s not suggested to do so or rely on it because the capacity of the station may just add to 3-10 miles driving of your Tesla.

Q3: What is the nose level of this station?

A3: Noise station is appr.40Db when the cooling fans are working.

Q4: What is the MOQ for your portable power station?

A4: 1. For our brand products, the MOQ is 1pcs;2. For customized/OEM/ODM products, please contact our sales team for details.

Q5: What is the product ordering process?

A5: 1. Please let us know the model, quantity and payment method you prefer.2. We will return Proforma with all details, terms and conditions.

3. Confirm payment of deposit or open L/C to us.

4. Production and delivery following your schedule

Q6: Can you get the the solar system customized for us ?

A6: Of course, our engineering designers will provide you with the most suitable product and design according to your needs.

Q7: How to become your agent?

A7: Contact us through Email, we will give you the best price and look forward to your greetings.
